What Reverse Engineering Can Do
Recreate discontinued or damaged parts
Convert physical components into CAD models
Modify and improve existing designs
Prepare parts for manufacturing or 3D printing
Digitise legacy components without drawings
Deliverables
Parametric CAD models (STEP / IGES)
Editable engineering CAD files
3D scan meshes (STL / OBJ) when required
2D engineering drawings (optional)
All files are delivered in industry-standard formats compatible with major CAD and manufacturing software.
Typical Workflow
Step 1. Consultation 💬
Review the part and project requirements.

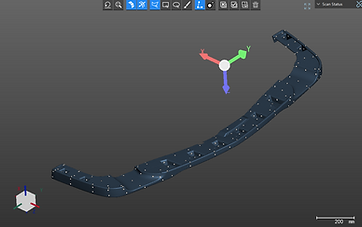

Step 2. 3D Scanning / Measurement 📡
Capture the geometry of the part.
Step 3. Data Processing 💻
Clean and prepare the scan data.
Step 4. CAD modelling 📐
Rebuild the part as a precise CAD model.
Step 5. Delivery 📦
Provide final CAD files for engineering use.
A simple and efficient process ensures accurate results and reliable CAD models for engineering and manufacturing use.
